Monitoring Ruby applications with Heka and Grafana

Created by Maciej Mensfeld / @maciejmensfeld / mensfeld.pl

So let's have a small test-case

So let's have a small test-case

Naive approach

around_filter :method do |task|
  benchmark(task.name) do
    task.process
  end
end


def benchmark(task_name)
  t = Time.now
  result = yield
  # Mongoid simple object
  Usage.create!(
    task_name: task_name,
    time_taken: (t.to_f - Time.now.to_f)*1000
  )
end


Naive approach

• Seemed to work
• Seemed to be fast enough
• But it wasn't :-(
• And if you forget about MongoDB TTL you end up with 500GB+ of logs

What would Jesus do?

He probably doesn't care ;)

But mozilla does!

Heka is an open source stream processing software system developed by Mozilla. Heka is a “Swiss Army Knife” type tool for data processing

Be friends with Heka because...

• It works...
• ... out of the box
• There's a Docker container with it
• It is fast
• It accepts statsd messaging format (via plugin)
• Accepts UDP packages
• Squashes data for you
• Works great with InfluxDB

So let's do this better!

We know that:

• Storing data locally is too slow
• Storing data locally is bad
• TCP requests slow down business logic
• Some losses are acceptable (fire & forget)
• Polluting business logic with monitors is bad

What do we really need?

• Way to hook up to anything easily
• How often
• How fast
• How many errors
• Nice charts
• Cross app comparisons

What can we do?

• Let's use AOP to wrap around monitoring logic
• UDP should be more than enough
• Heka to collect data
• InfluxDB to store it
• Grafana to graph it
• Connection pool to avoid killing GC
• Let's also wrap it as a gem :)

Aspect Oriented Programming

In computing, AOP is a programming paradigm that aims to increase modularity by allowing the separation of cross-cutting concerns.

There are many AOP libraries for Ruby. We use Aspector

With AOP we can create concerns that we can attach to any method of any class as a before, around and after action.

Simple aspect example

class Handler < BaseHandler
  def handle
    # Sends a UDP packet about method usage
    Usage.increment(key)
  end

  before options[:method], aspect_arg: true do |aspect|
    aspect.handle
  end
end

# Counter for Sinatra app requests
Handler.apply(App, method: :call, key: :request)

# Counter for number of invokations of process method
Handler.apply(Processor, method: :process, key: :processor)


More examples

# Monitor number of invokations, time taken and number of errors
Usage::ComplexHandler.apply(
  App, method: :call, key: :request
)
Usage::ComplexHandler.apply(
  FbService, method: :find, key: :fb_find
)

# We can always track how often do we save Mongoid objects
Usage::IncrementHandler.apply(
  Mongoid::Document, method: :save, key: :mg_save
)

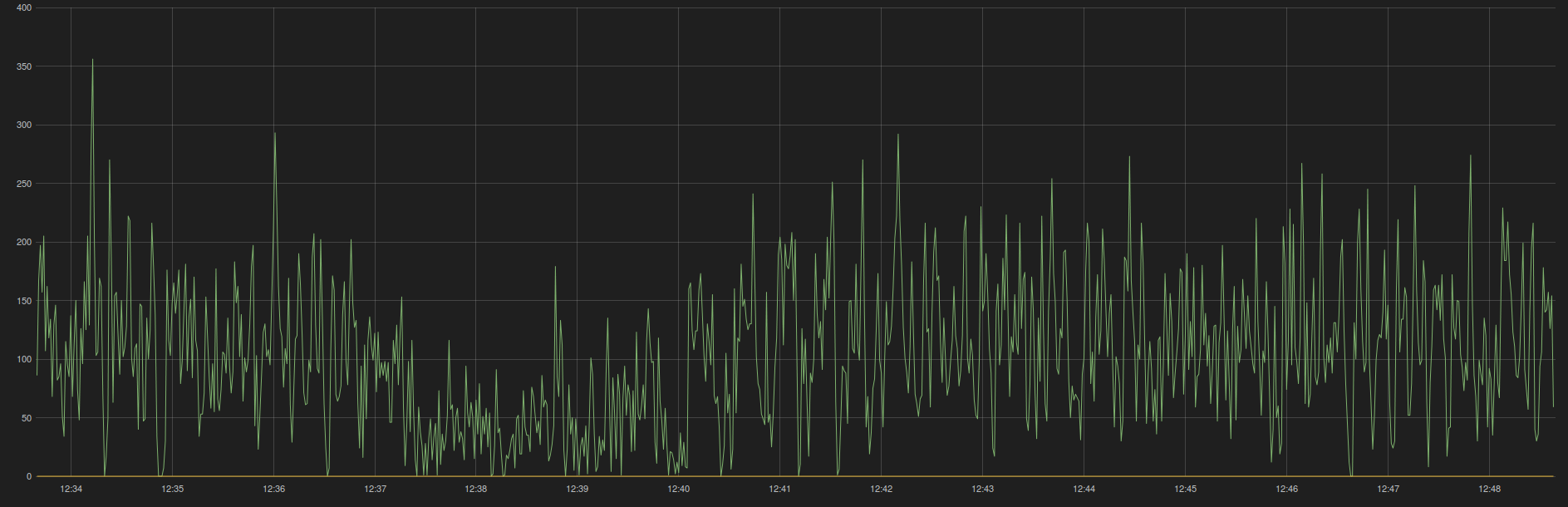

Let's gra(fana)ph it!

• Rich graphing
• Mixed styling
• Multiple dashboards
• InfluxDB query editor
• Annotations
• Multiple data sources
• JSON graph editor

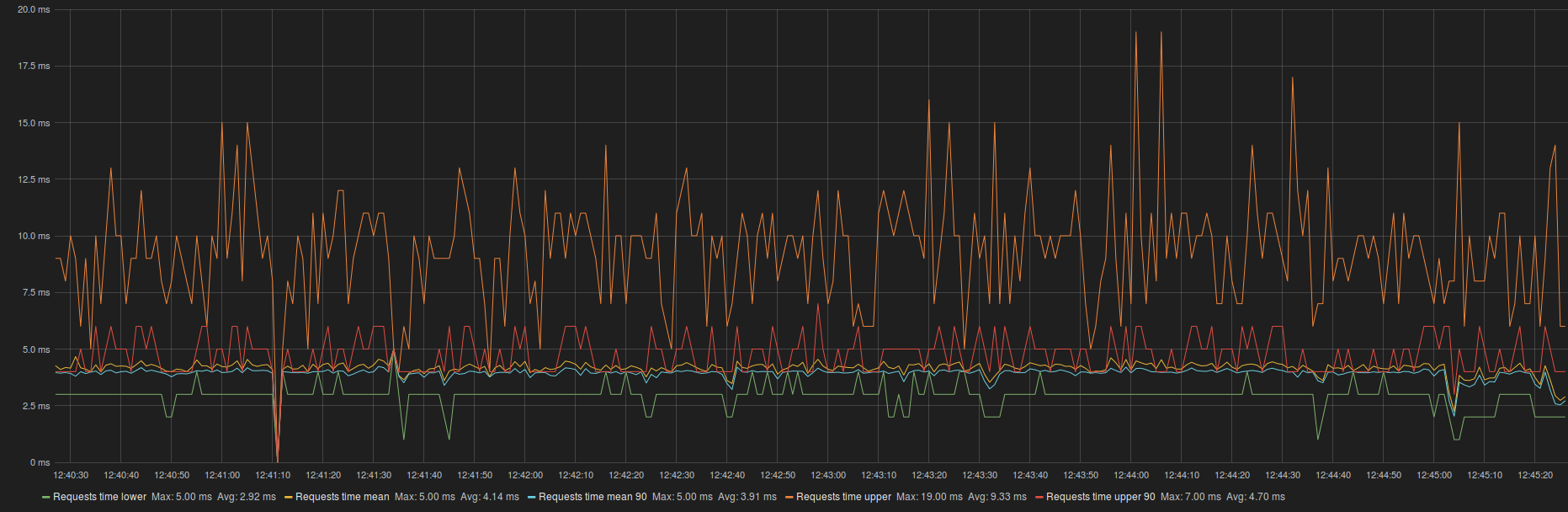

JSON editor

{
  "target": "",
  "function": "max",
  "column": "value",
  "series": "stats.request.times.upper",
  "query": "select max(value) from \"stats.request.times.upper\"",
  "groupby_field": "",
  "alias": "Requests time upper"
},


Downsides

• Self maintained
• Hard to debug
• Silently fails when network issues
• Needs some configuration between components
• Won't auto addapt to application changes
• Useless for non-app (proxy, etc) level issues

THE END - Q & A

Maciej Mensfeld

- Aspector
- Heka
- InfluxDB
- Grafana
